LAB 2 - MAE4190 FAST ROBOTS

Lab Tasks

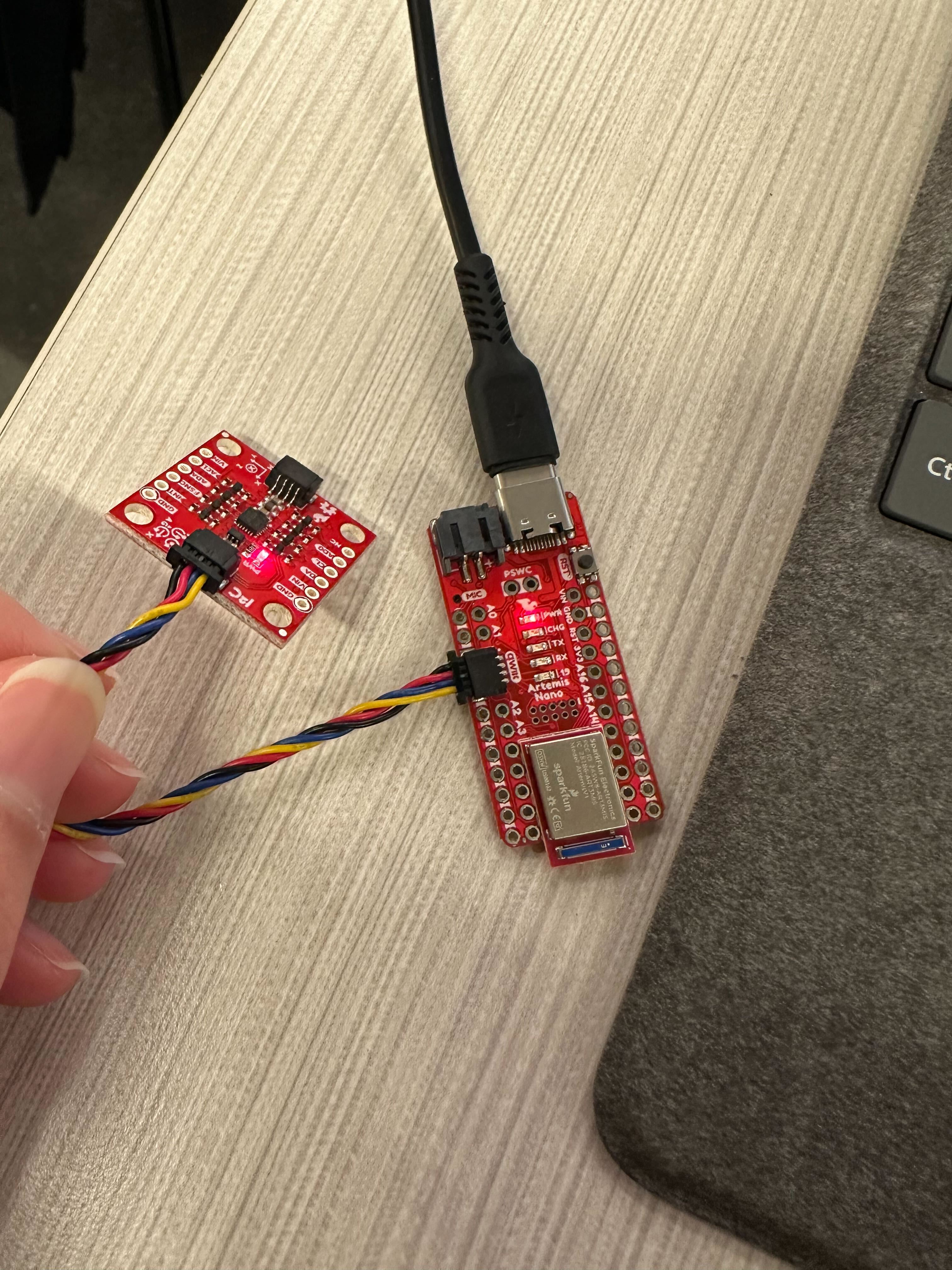

Set up the IMU

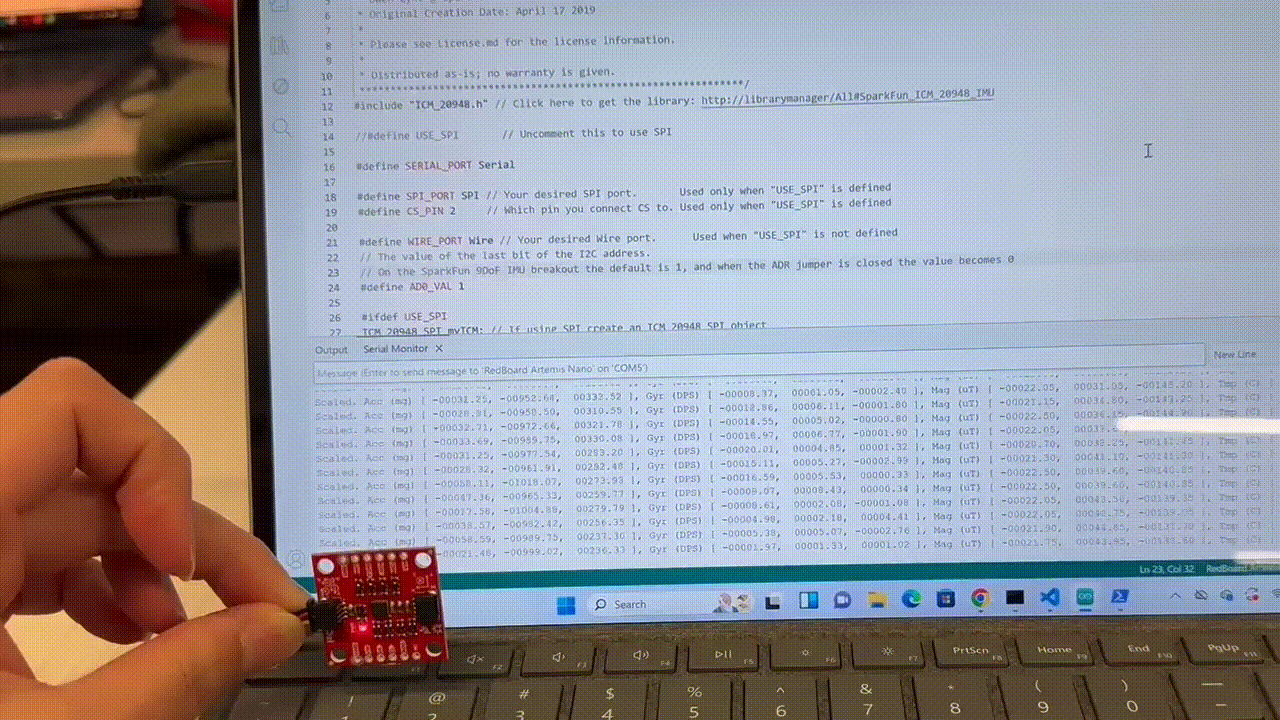

You can see the numbers changing as I change the orientation of the IMU. The acceleration values change according to the orientation of the IMU, while the gyroscope data changes based on the motion of me moving the IMU (angular velocity).

The IMU offers two I2C addresses, corresponding to the two different pins. Two different AD0 configurations are needed to distinguish between the higher and lower addresses while connected to the same I2C bus. That is the purpose of the AD0_VAL. The default is 1, and when the ADR jumper is closed the value becomes 0.

Accelerometer

The accelerometer measures linear acceleration in all directions. Hence, from its x, y and z outputs we are able to determine the orientation angles of the IMU. However, since it is affected by gravity, the accelerometer cannot help us find rotation in yaw as the acceleration would remain around 9.81 m/s^2, regardless of which way we rotate it parallel to the ground.

I converted the data from the accelerometer to roll and pitch using the equations from lecture:

case ACC_PITCHROLL: {

          for (int tindex = 0; tindex < 3000; tindex++){
            time_doc[tindex] = millis();

            myICM.getAGMT();
            float ax = myICM.accX();
            float ay = myICM.accY();
            float az = myICM.accZ();

            float roll = atan2(ay, az) * 180/M_PI;
            float pitch = atan2(ax, az) * 180/M_PI;

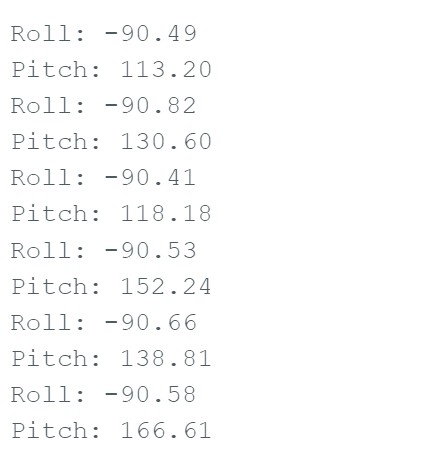

This is the output of the pitch and roll when the IMU is at {-90, 0, 90}.

The roll of the accelerometer is fairly accurate, I set it squarely against the table and the reading is consistently around -90 degrees. Small adjustments are also pretty stable. However, the pitch fluctuates a lot, potentially due to the vibrations along my table. It also seems to have a slight offset, outputting values up to 166 degrees when it should be at 90.

In order to broadcast the data over to python (gyroscope code included, but they are similar):

timestamp = []
acc_pitch = []
acc_roll = []
gyr_pitch = []
gyr_roll =[]
gyr_yaw = []

def notifyBle(uuid, data):
    data = data.decode().strip()
    parts = data.split(",")

    timestamp.append(float(parts[0]))
    acc_pitch.append(float(parts[1]))
    acc_roll.append(float(parts[2]))
    gyr_pitch.append(float(parts[3]))
    gyr_roll.append(float(parts[4]))
    gyr_yaw.append(float(parts[5]))

Graphing the accelerometer data:

plt.plot(timestamp, acc_pitch[0:3000], label="Pitch")
plt.plot(timestamp, acc_roll[0:3000], label="Roll")

plt.xlabel("Time")
plt.ylabel("Pitch / Roll")
plt.title("Accelerometer Pitch and Roll vs Time")
plt.legend()
plt.grid(True)

plt.show()

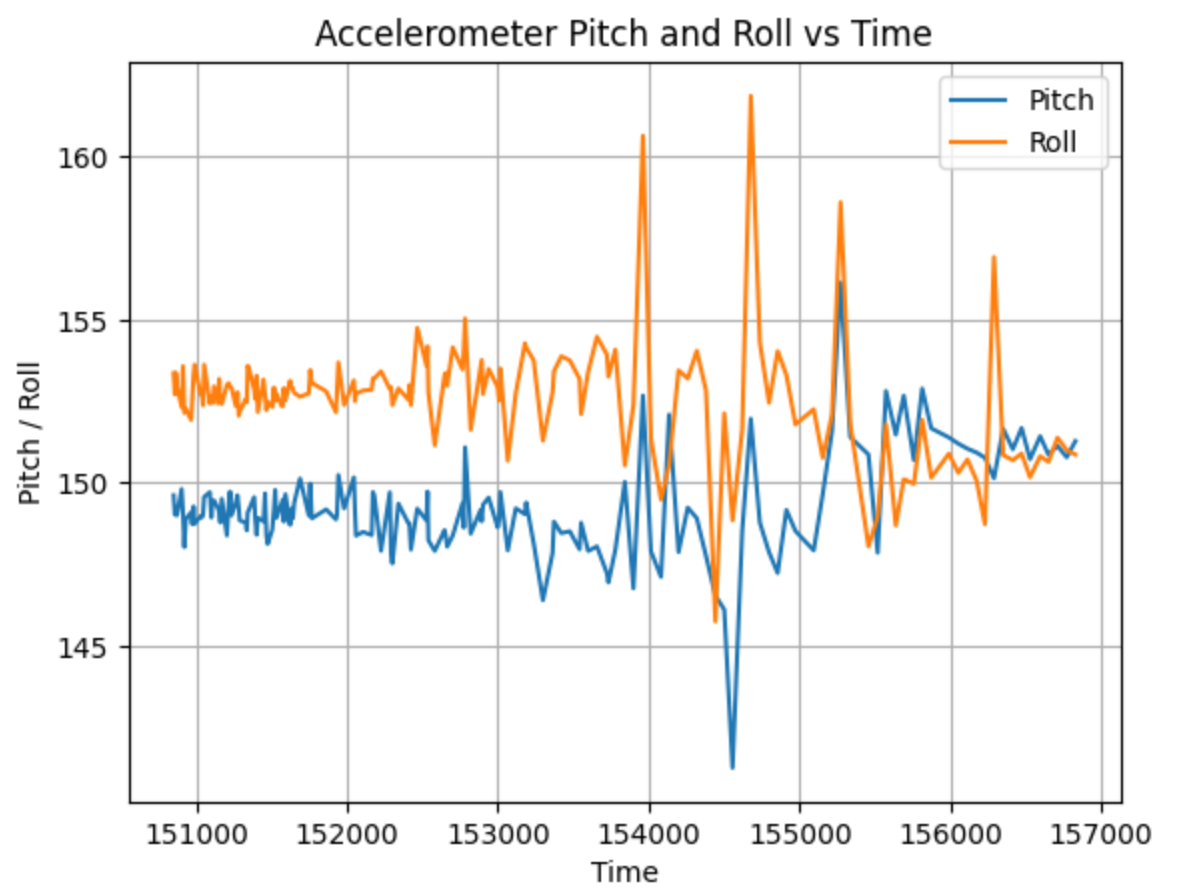

Here is the jupyter graph that generates with the data obtained with an arbitrary orientation. As the graph shows, the data is quite noisy.

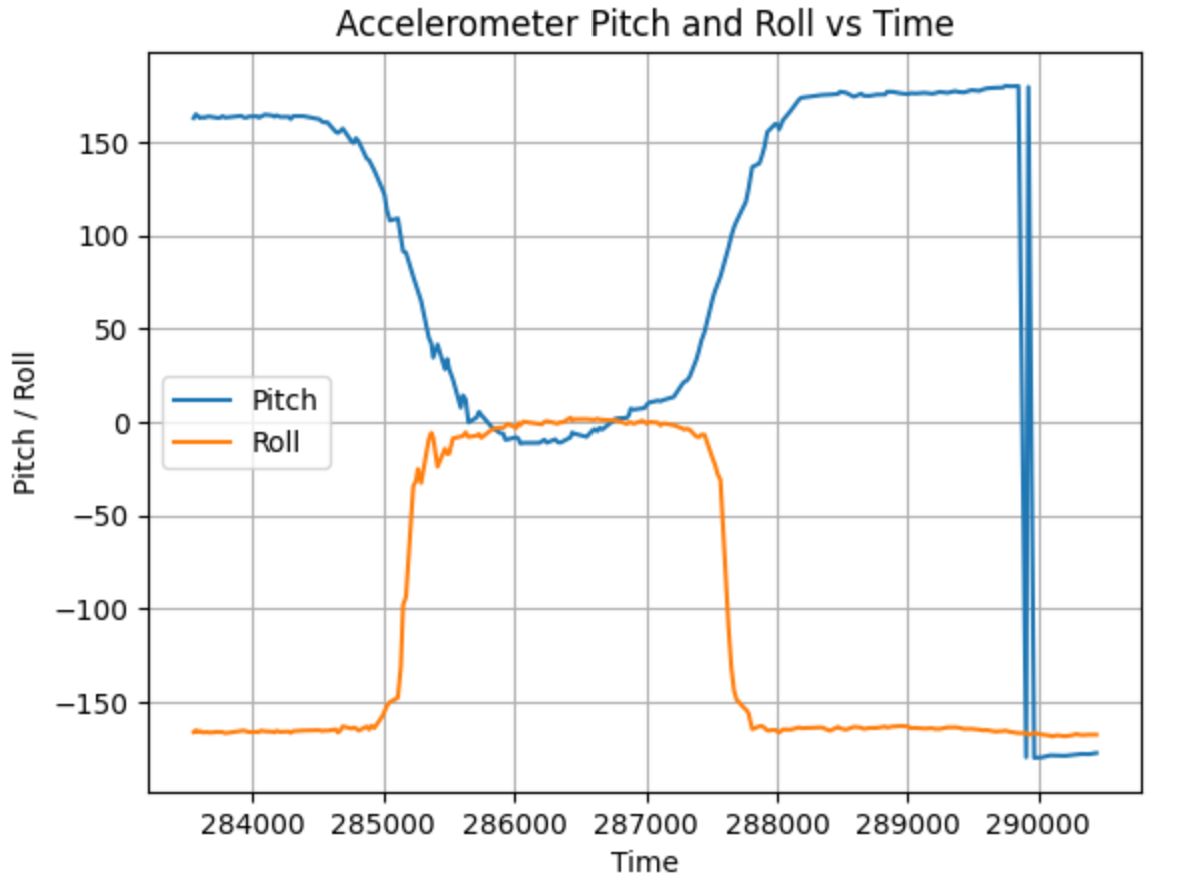

Here is a graph that shows the accelerometer data while I’m flipping the IMU around. The sudden spike at the end is due to me setting the IMU down on the table.

In order to filter out some of the noise, we want to analyze the frequencies at which the noise occurs at with a Fourier Transform.

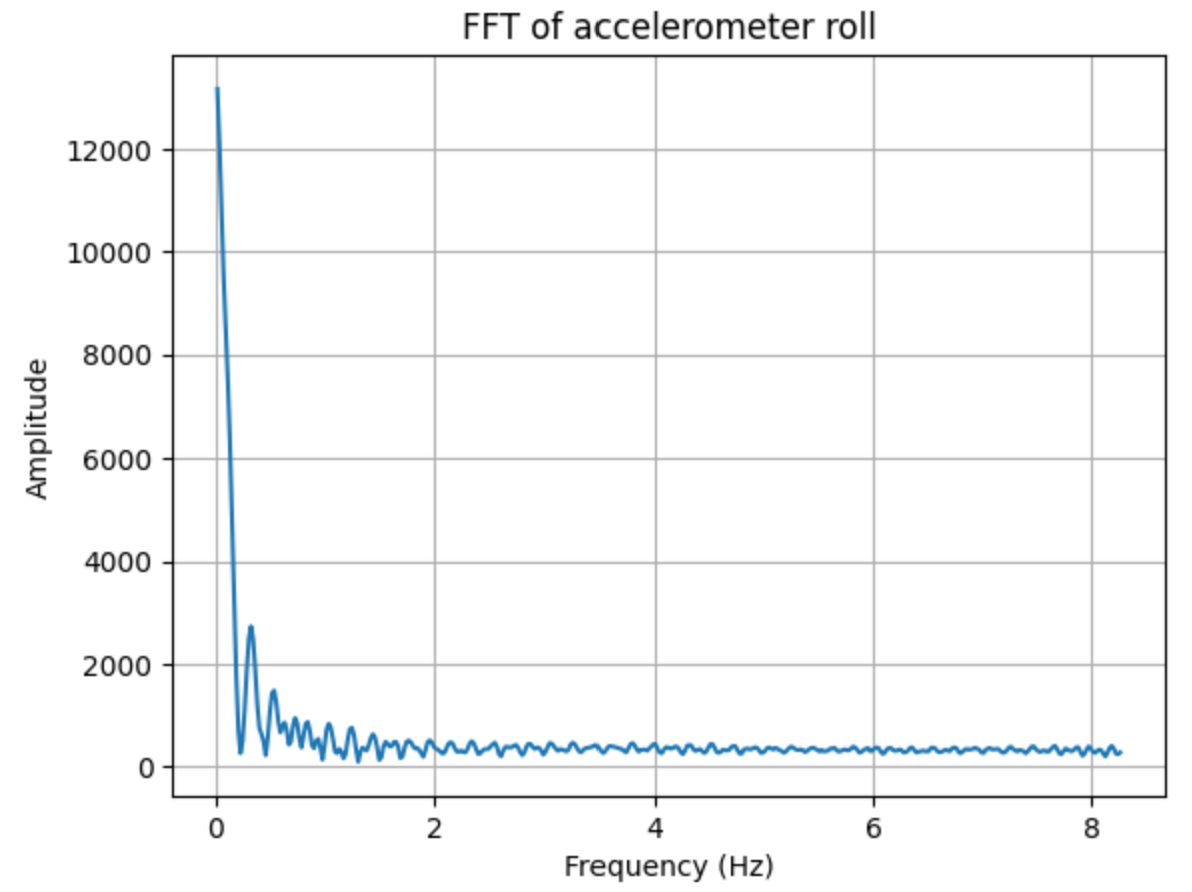

For the accelerometer roll Fourier Transform:

dt = np.mean(np.diff(timestamp)) / 1000

N = len(acc_roll)
fft_roll = np.fft.fft(acc_roll)
freqs_roll = np.fft.fftfreq(N, d=dt)

pos_freq = freqs_roll > 0

freqs_roll = freqs_roll[pos_freq]
fft_mag = np.abs(fft_roll[pos_freq])

plt.plot(freqs_roll, fft_mag)
plt.xlabel("Frequency (Hz)")
plt.ylabel("Amplitude")
plt.title("FFT of accelerometer roll")
plt.grid(True)
plt.show()

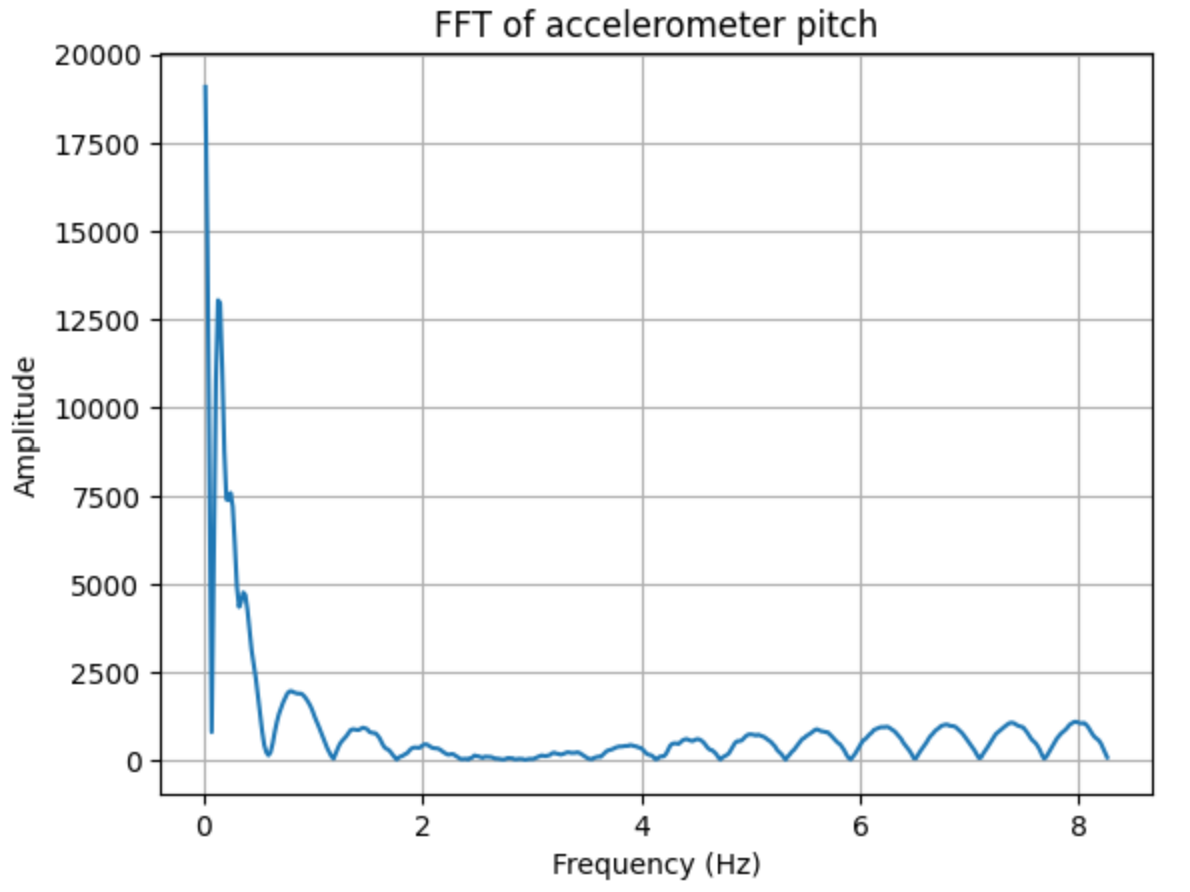

For the accelerometer pitch Fourier Transform: Code is very similar, except with the pitch data from the accelerometer instead.

Looking at the FFT graphs, the accelerometer tends to have higher magnitudes in lower frequencies, which is expected as any motion induced by us would be a much slower change as compared to ambient noise or vibrations in the environment. Since the pitch shows significant peaks after around 3.5Hz, that will be my benchmark for the low pass filter. In order to calculate the alpha:

low_pass_freq = 3.5
alpha = (2*np.pi*low_pass_freq*dt) / (1 + 2*np.pi*low_pass_freq*dt)
low_pass = np.zeros_like(acc_roll)

low_pass[0] = acc_roll[0]
for i in range(1, len(acc_roll)):
    low_pass[i] = alpha*acc_roll[i] + (1-alpha)*low_pass[i-1]

plt.plot(timestamp, acc_roll, label="Raw Data")
plt.plot(timestamp, low_pass, label="Filtered Data")
plt.title("Accelerometer Roll Raw and Filtered Data vs Time")
plt.xlabel("Time")
plt.ylabel("Raw roll data/filtered roll data")
plt.legend()
plt.show()

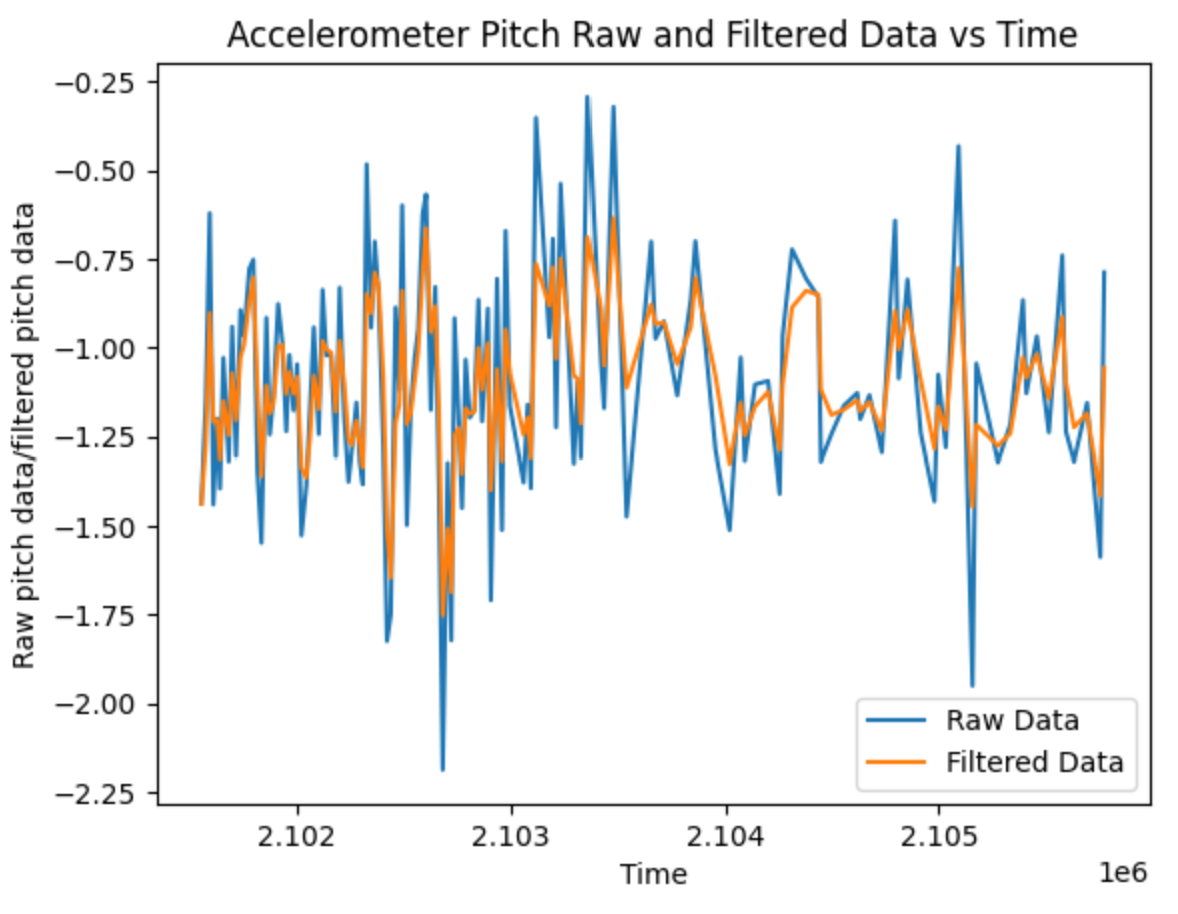

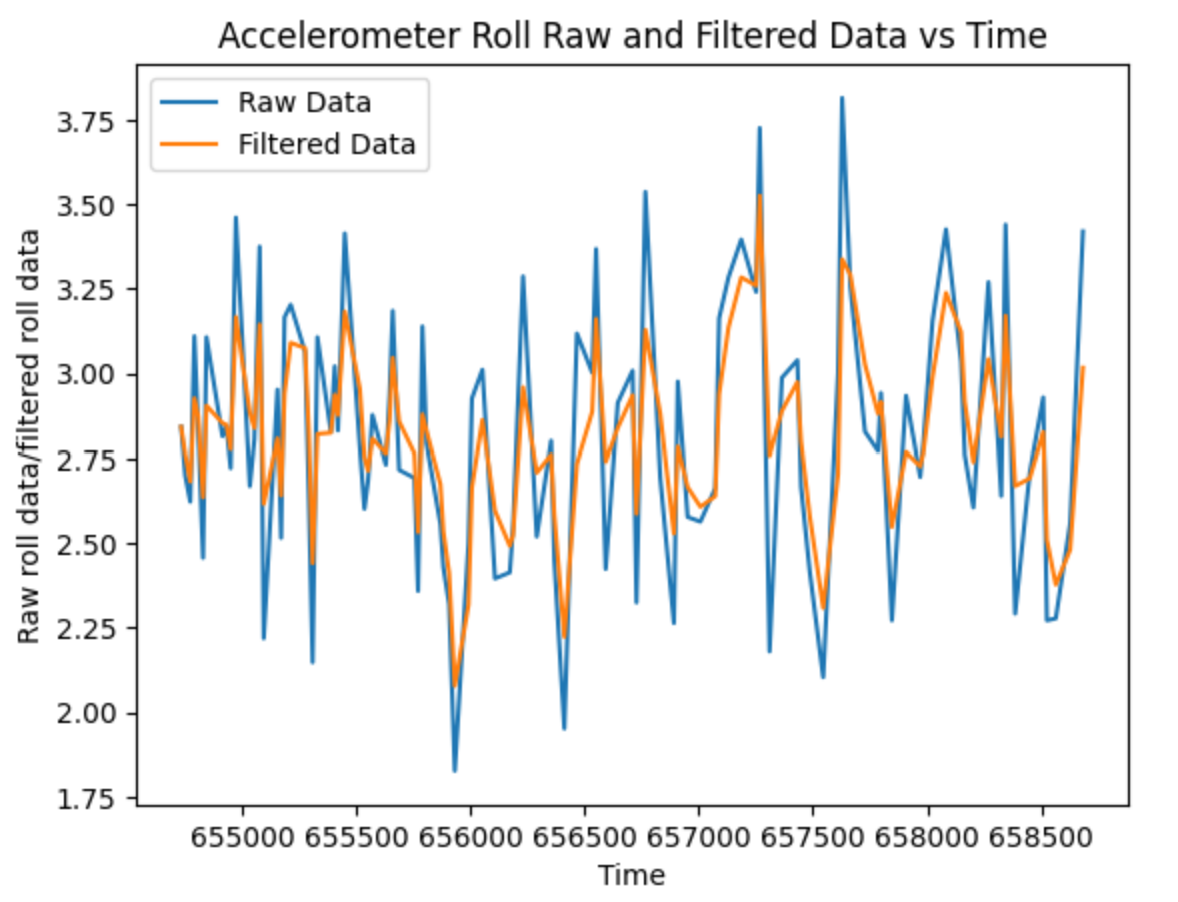

The comparison between the raw and unfiltered data are shown above. The spikes and sudden fluctuations for both roll and pitch data are mellowed out, their magnitudes decreased. The changes seems more obvious in the pitch data, which makes sense since while the roll data has a small amount of noise at all frequencies, the pitch data has significant noise at frequencies above 3.5Hz. I therefore chose the frequency threshold to be low enough to filter out most of the contributing noise, but high enough that I do not lose other useful data.

Gyroscope

The gyroscope provides another form of data captured by the IMU. It measures the rate of angular change, and as a result it is able to provide us with data of all roll, pitch and yaw. The gyroscope and accelerometer on the IMU complement each other in the form of sensor fusion, giving us more reliable and comprehensive results. While the gyroscope gives us the yaw orientation which the accelerometer cannot measure, the accelerometer is less prone to drift, which the gyroscope experiences due to its nature of integrating over small intervals in time with dead reckoning.

In order to incorporate the gyroscope readings as well, the Arduino command is now:

case PITCHROLLYAW: {

    for (int tindex = 0; tindex < 3000; tindex++){
        time_doc[tindex] = millis();

        myICM.getAGMT();
        float ax = myICM.accX();
        float ay = myICM.accY();
        float az = myICM.accZ();
        float gx = myICM.gyrX();
        float gy = myICM.gyrY();
        float gz = myICM.gyrZ();

        float acc_roll = atan2(ay, az) * 180/M_PI;
        float acc_pitch = atan2(ax, az) * 180/M_PI;

        if (tindex == 0){
            dt = 0;
        }
        else {
            dt = (time_doc[tindex] - time_doc[tindex-1])/1000.;
        }

        gyr_roll += gx * dt;
        gyr_pitch += gy * dt;
        gyr_yaw += gz * dt;

        SERIAL_PORT.print(dt);
        SERIAL_PORT.print("    Acc_Roll: ");
        SERIAL_PORT.print(acc_roll);
        SERIAL_PORT.print(", Acc_Pitch: ");
        SERIAL_PORT.print(acc_pitch);
        SERIAL_PORT.print(", Gyr_Roll: ");
        SERIAL_PORT.print(gyr_roll);
        SERIAL_PORT.print(", Gyr_Pitch: ");
        SERIAL_PORT.print(gyr_pitch);
        SERIAL_PORT.print(", Gyr_Yaw: ");
        SERIAL_PORT.println(gyr_yaw);

        tx_estring_value.clear();
        tx_estring_value.append((int)time_doc[tindex]);
        tx_estring_value.append(",");
        tx_estring_value.append(acc_roll);
        tx_estring_value.append(",");
        tx_estring_value.append(acc_pitch);
        tx_estring_value.append(",");
        tx_estring_value.append(gyr_roll);
        tx_estring_value.append(",");
        tx_estring_value.append(gyr_pitch);
        tx_estring_value.append(",");
        tx_estring_value.append(gyr_yaw);
        tx_characteristic_string.writeValue(tx_estring_value.c_str());

    }


          break;

}

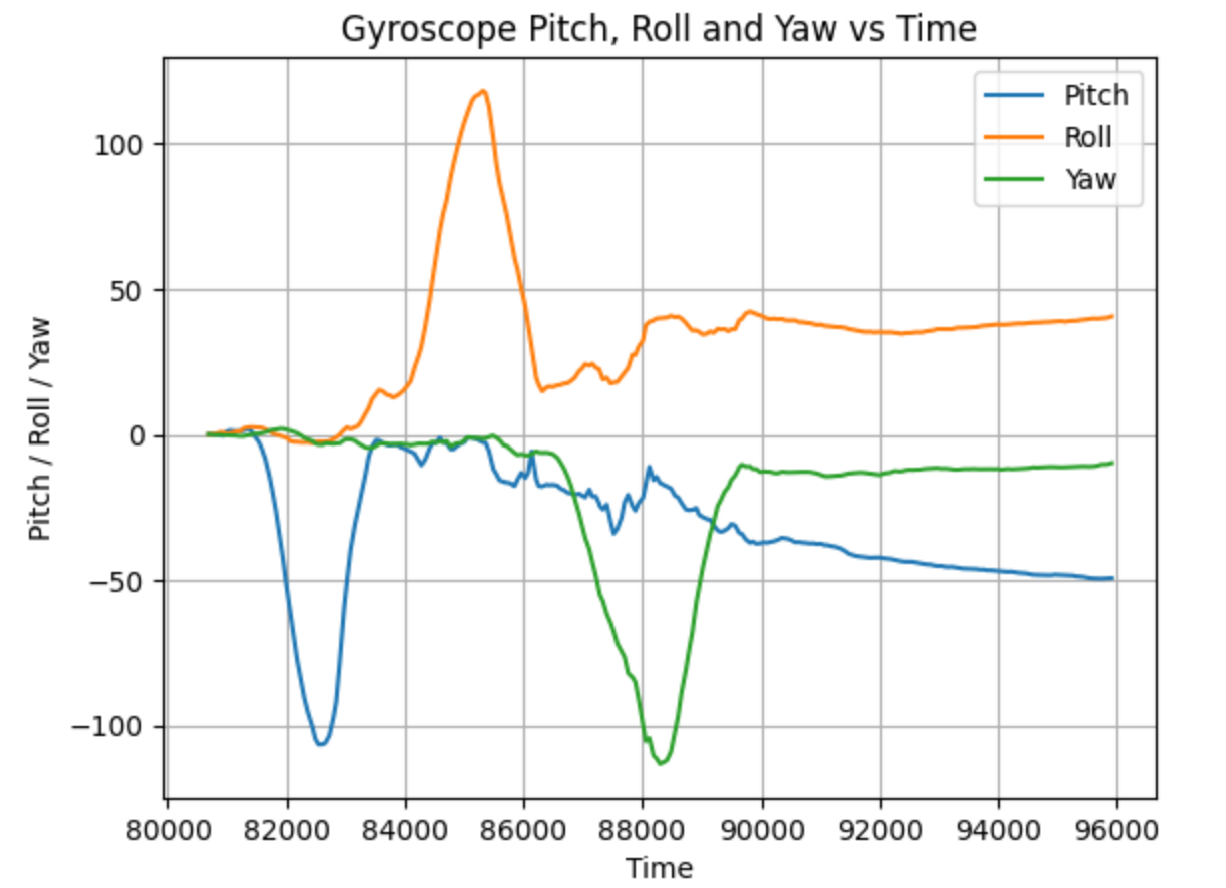

The time intervals are now calculated by storing them in an array (time_doc). The serial print of dt ensures that each interval is calculated correctly and the gyroscope readings convert and compound as expected. The following graph shows the results as I am rotating the IMU about 90 degrees (a little inaccurate) in each of the axes of rotation:

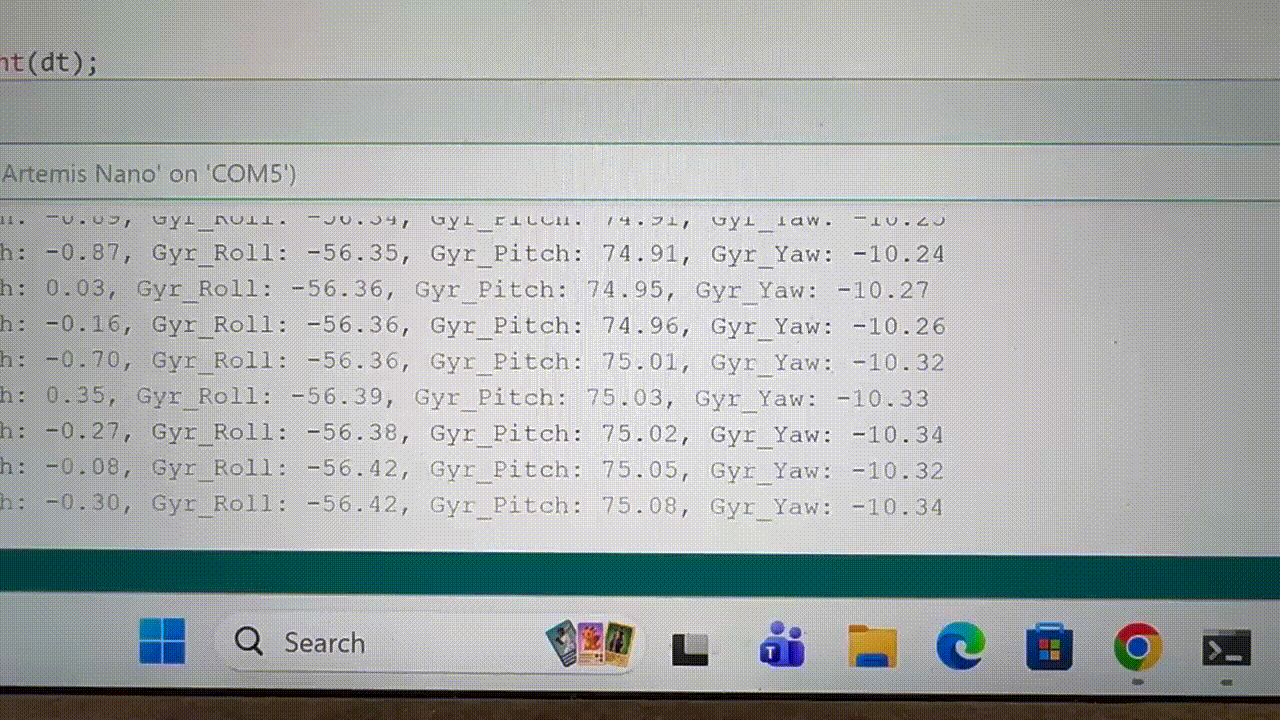

As compared to the accelerometer data, the gyroscope readings have a lot less noise, having relatively smooth plots even comparing with the data with the low pass filter. It is also able to detect changes in yaw. However, there is a visible effect of the drift, as the graph shows a slight deviation towards the end even as the IMU is placed still. This is also reflected in the printed data, as it gradually increments despite no movement from the IMU:

To improve the accuracy and stability of the measured angles, the multiple sensors on the IMU allows us to utilize sensor fusion to combine the data from the accelerometer and the gyroscope. To do so, we need to apply a complementary filter.

We can use this to estimate more accurate and reliable data for roll and pitch, mitigating the effects of noise on the accelerometer and drift on the gyroscope, but unfortunately we cannot do this for yaw as we only have the gyroscope data. To calculate the complementary filter through the equation, I had to implement this

float gx_diff = gx * dt;
float gy_diff = gy * dt;

gyr_roll += gx_diff;
gyr_pitch += gy_diff;
gyr_yaw += gz * dt;

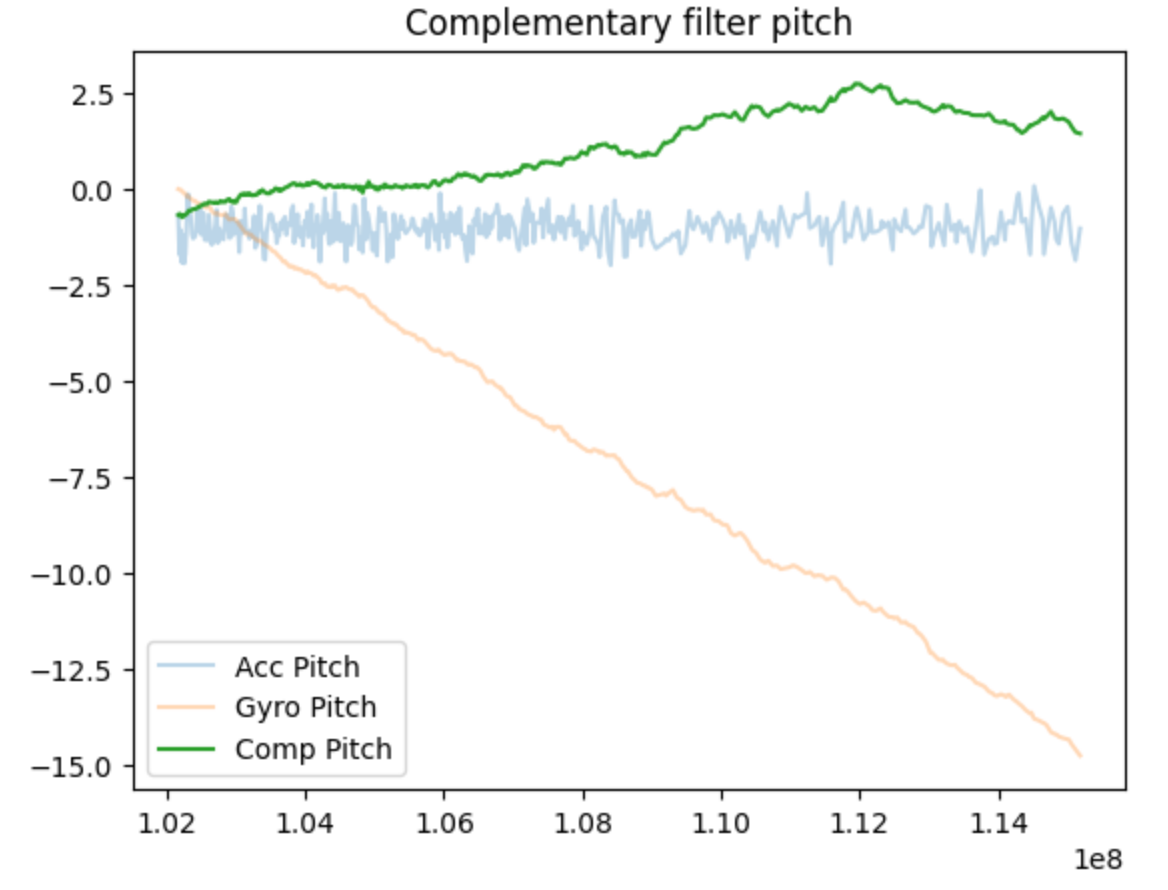

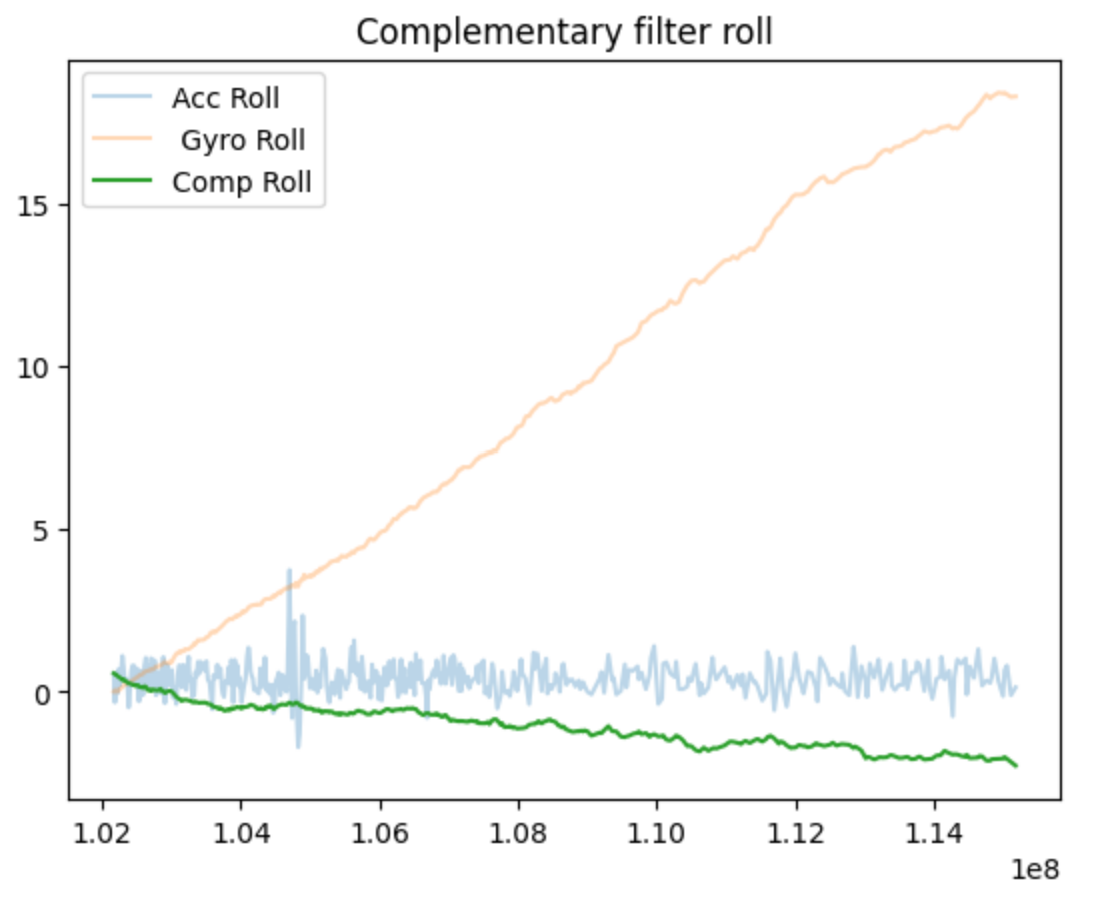

My previous code used millis(), but I think the resolution may not be sufficient to run my loops on, leading to my gyroscope data drifting significantly. I changed it to micros() instead. Looking at the gyroscope data in the background, it still drifts a significant amount. I am not quite sure why this is the case, but the complementary filter balances out the drift a little, staying relatively level throughout the duration. The filtered data also mitigates the noise from the accelerometer a lot, becoming much more smooth and less distorted.

#Not the same alpha as the accelerometer low pass filter
comp_alpha = 0.98

comp_roll = np.zeros(len(timestamp))
comp_roll[0]  = acc_roll[0]
comp_pitch = np.zeros(len(timestamp))
comp_pitch[0] = acc_pitch[0]

for i in range(1, len(timestamp)):
    comp_roll[i]  = comp_alpha * (comp_roll[i-1] + gx_diff[i]) + (1-comp_alpha) * acc_roll[i]
    comp_pitch[i] = comp_alpha * (comp_pitch[i-1] + gy_diff[i]) + (1-comp_alpha) * acc_pitch[i]

Sample Data

To speed up my loops for sending data, I removed all my delays and commented out all my serial prints. I also rewrote my main loop so that it sends data from an array instead of each piece of data individually. I think another improvement I could make to make the loops faster is to move all the calculations into python instead such that the Arduino code does not need to process as much data.

acc_roll_doc[tindex] = atan2(ay, az) * 180/M_PI;
            acc_pitch_doc[tindex] = atan2(ax, az) * 180/M_PI;

            if (tindex == 0){
              dt = 0;
            }
            else {
              dt = (time_doc[tindex] - time_doc[tindex-1])/1000000.;
            }

            float gx_diff = gx * dt;
            float gy_diff = gy * dt;

            gyr_roll += gx_diff;
            gyr_pitch += gy_diff;
            gyr_yaw += gz * dt;

            gyr_roll_doc[tindex] = gyr_roll;
            gyr_pitch_doc[tindex] = gyr_roll;
            gyr_yaw_doc[tindex] = gyr_roll;

In terms of storage, I think having separate arrays may be better. It is more convenient and more straightforward to check for specific data, and it is easier to prevent the arrays from overfilling and timing out. In terms of format, it would probably be most optimal to have them stored as floats, but sent in one big package as strings over the BLE. I think I currently have the data stored as floats both on the Artemis and on Python, but communication between them is sent as strings.

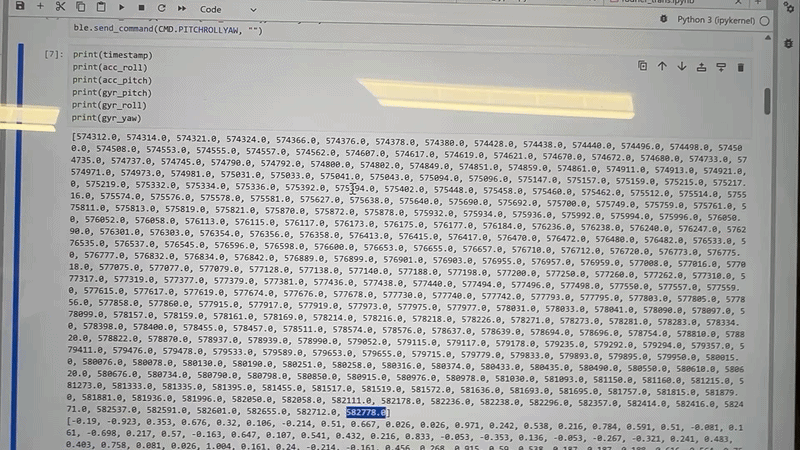

Here is my data as arrays, gathered over about 8s:

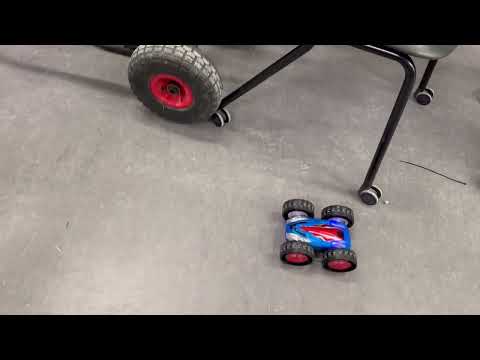

Record a Stunt

The car accelerates and rotates very fast. It carries a lot of momentum, which means when we perform autonomous stunts we will not only have to take into account the reaction speeds of the sensor and the code, but also the inertia that the car carries.
